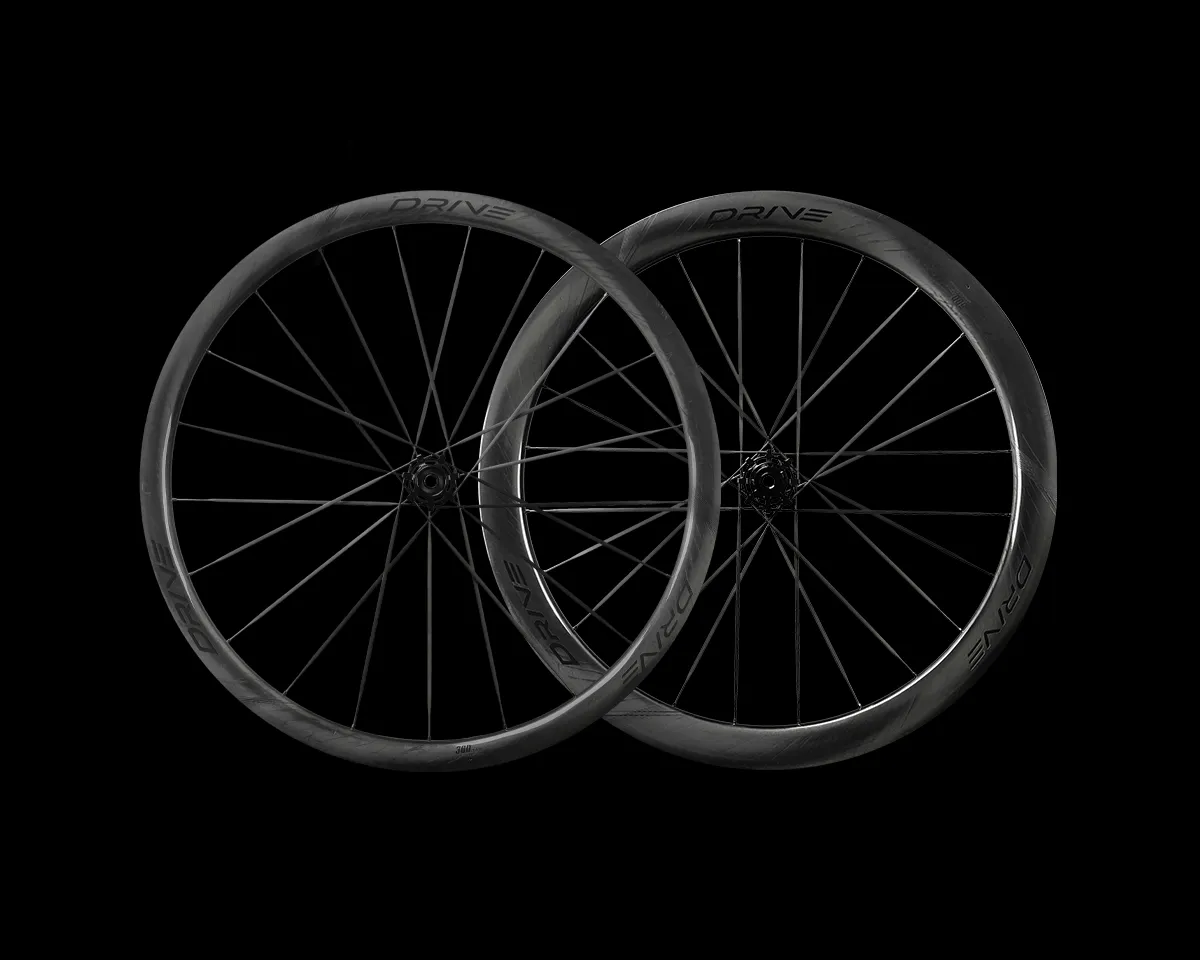

Elite-Wheels Drive II Mixed Depth - Disc Brake - Carbon Wheelset

Having a mixed depth wheelset can improve the aerodynamics and handling of a bike. A shallower front wheel can make a bike easier to control as it is more resistant to crosswinds, while a deep section rear wheel can reduce aerodynamic drag. Mixed depth wheels are the favorite or many pro and experienced riders, as it can make for a more balanced ride.

Now we give riders the choice to customize their own wheelset, allowing for the front and rear wheel rim depths to be selected independently.

– Intended Use: Road
– Carbon Spoke Wheelset
– Disc Brake Wheelset
– Brake Interface: Center Lock by default
– Axle: Thru axle by default

Specifications:

• Rims:
• Wheel Size: 700c
• Tire Compatibility: Clincher / Tubeless
• Bead Type: Hooked (Reduced Hook Design)
• Rim Depth: Check Options
• Inner Width: 23mm
• Outer Width: 31mm
• Rim Finish: Glossy Marbling Black
• Hubs:
• Front Hub Spacing: 12x100mm
• Rear Hub Spacing: 12x142mm
• Bearing: S&S Ceramic
• Brake Compatibility: Disc (Center Lock)
• Freehub Type: 50T Star Ratchet
• Freehub Compatibility: Shimano / SRAM XDR
• Spokes:
• Front Spoke Pattern: 3X/Radial (2:1)
• Rear Spoke Pattern: 1X/3X (1:2)
• Spoke Count: 21 Front / 24 Rear
• Spoke Type: Carbon Spoke (4.5mm)
• Nipple Type: Alloy Secure Lock
• Spare Spokes Included: 4
• Other Details:
• Weight (Pair): dependent on rim choice
• Rider Weight Limit: 270lbs / 120kg
• Recommended Tire Sizes: 700 x 28-40C
• Certifications: UCI Approved, CE Certified
• Included Accessories: Pre-installed Rim Tape & Tubeless Valves, 4 Spare Spokes
