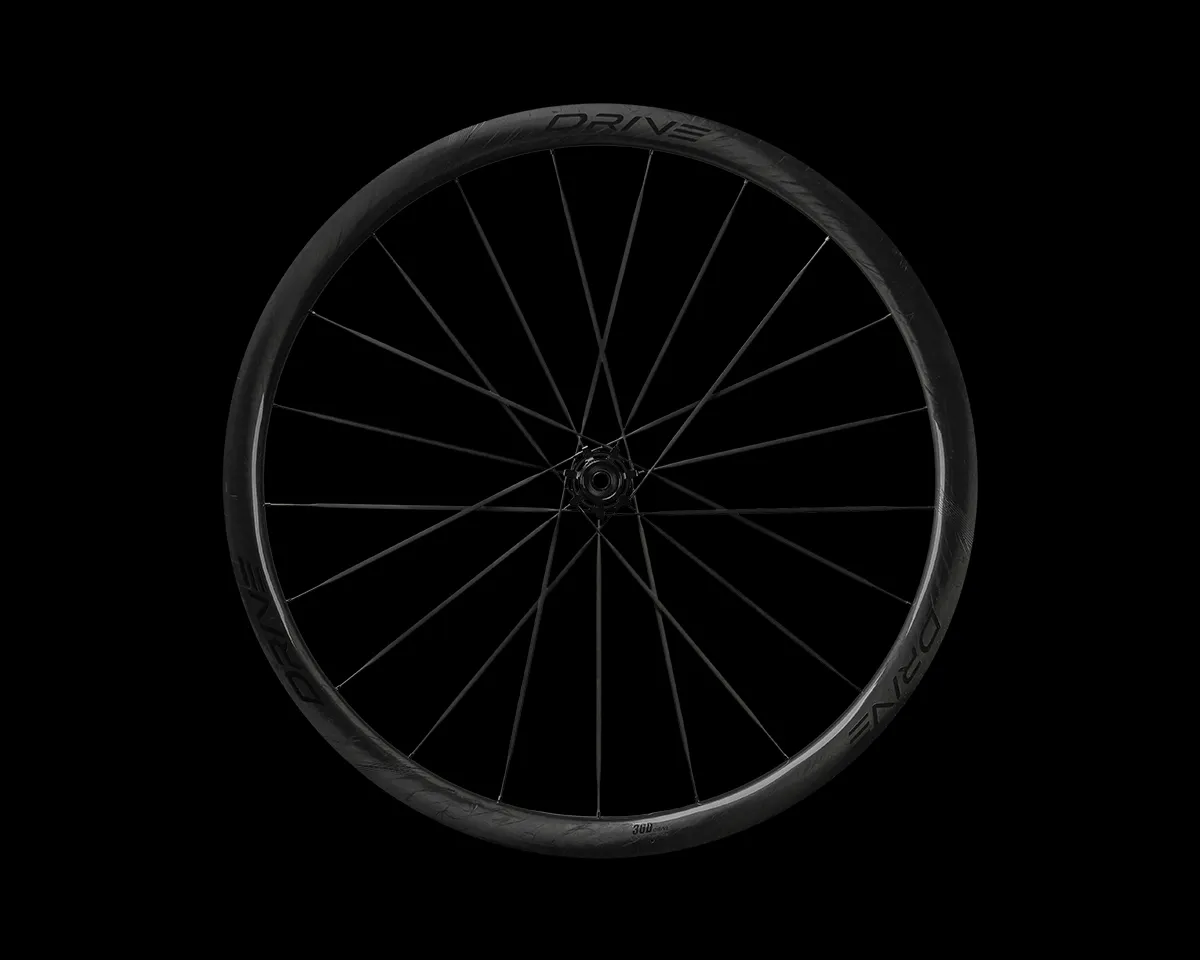

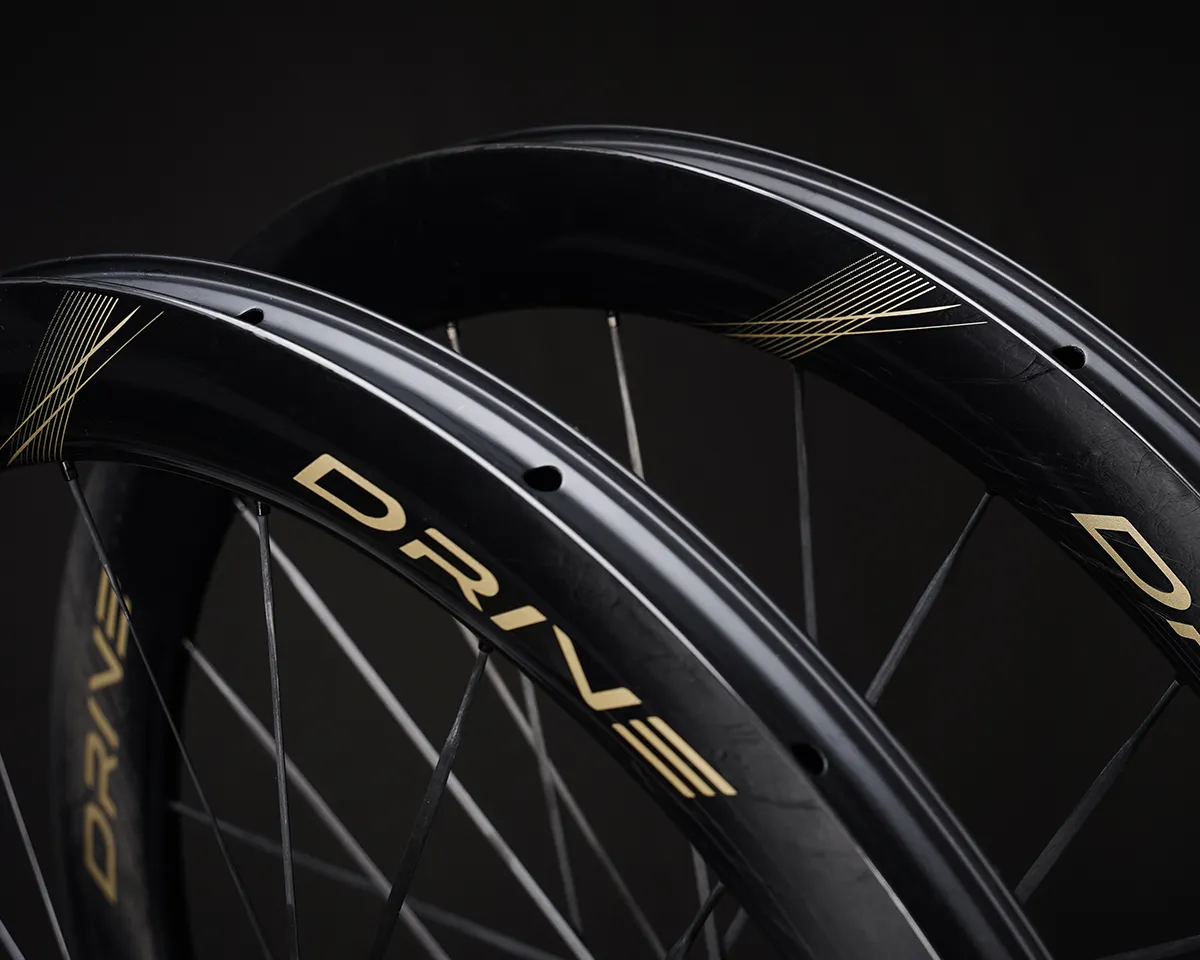

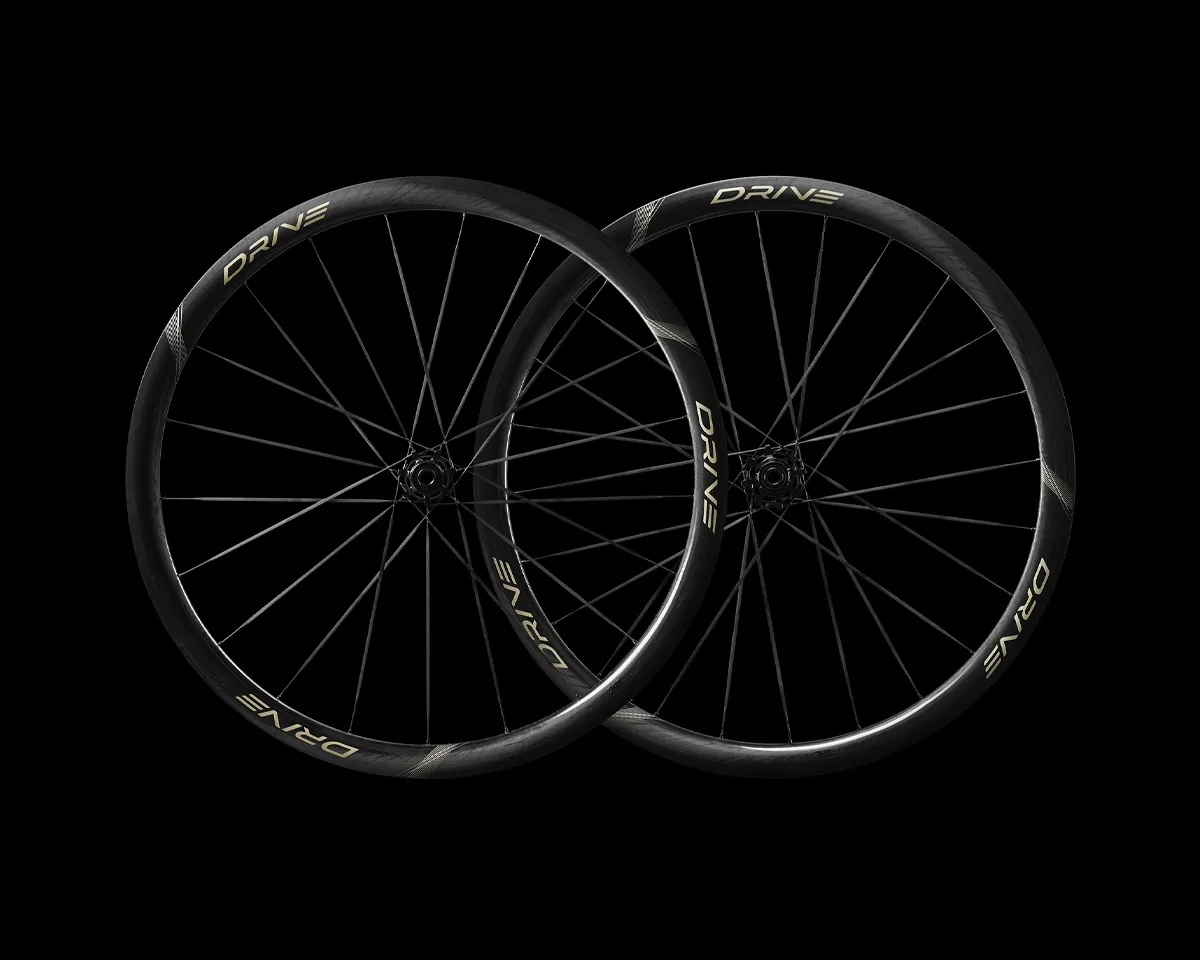

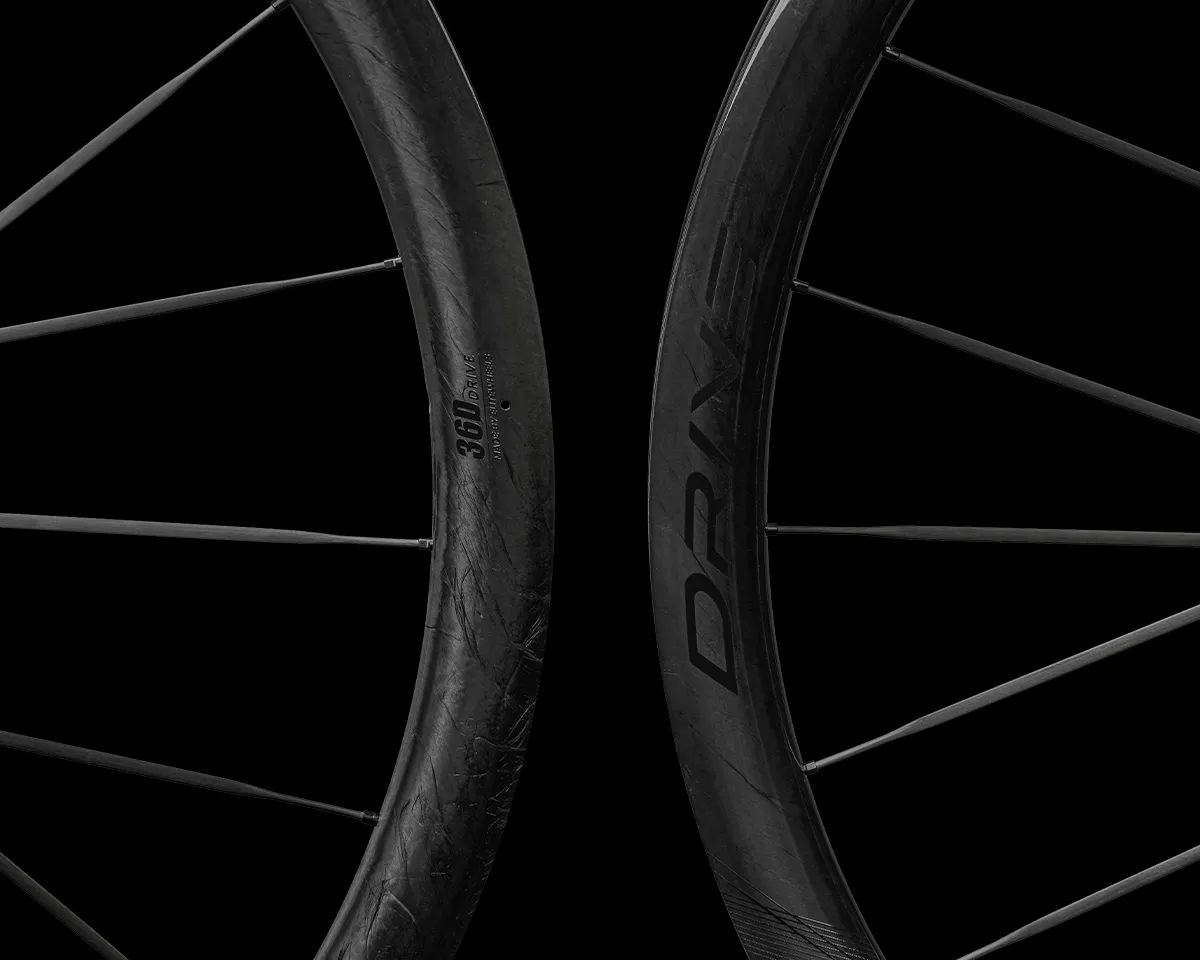

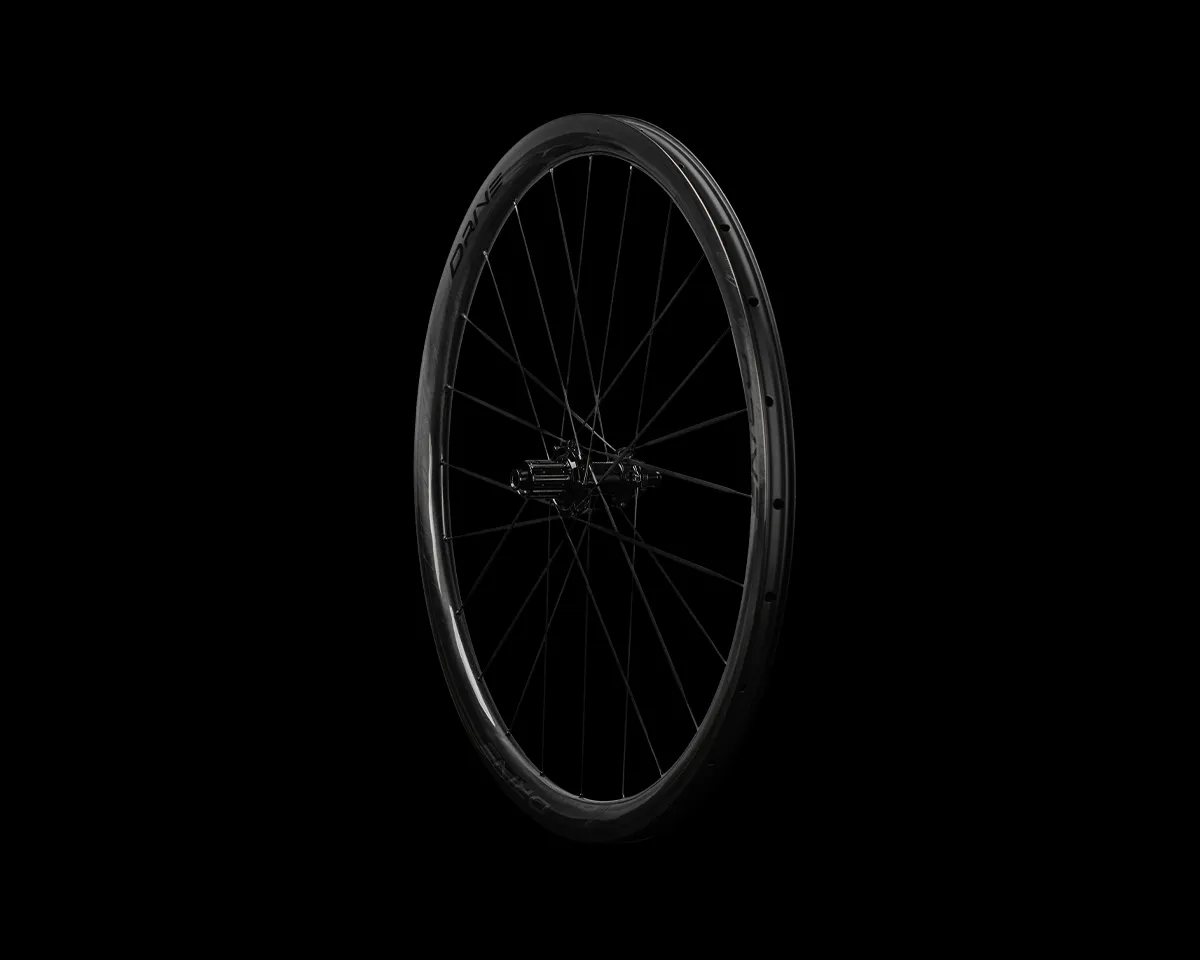

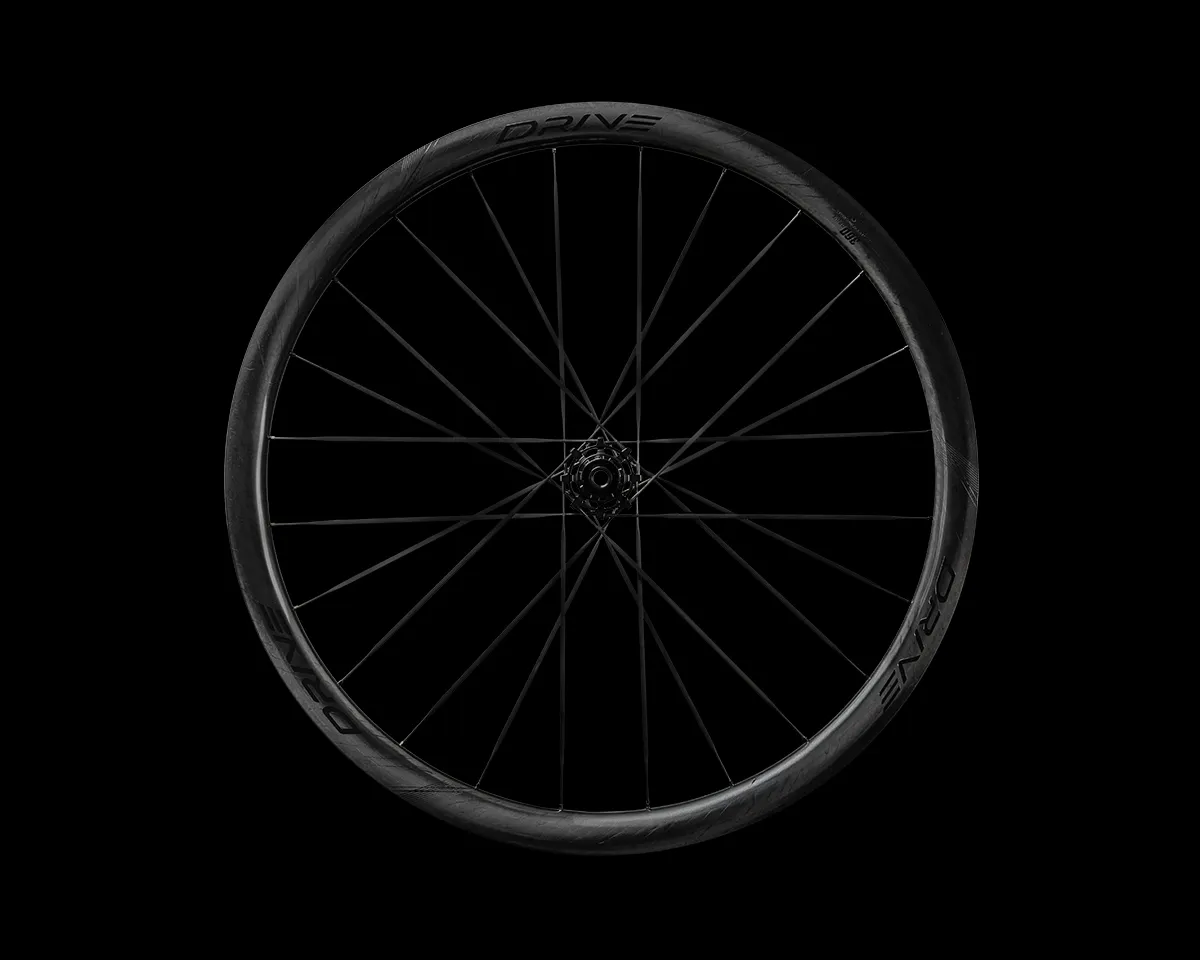

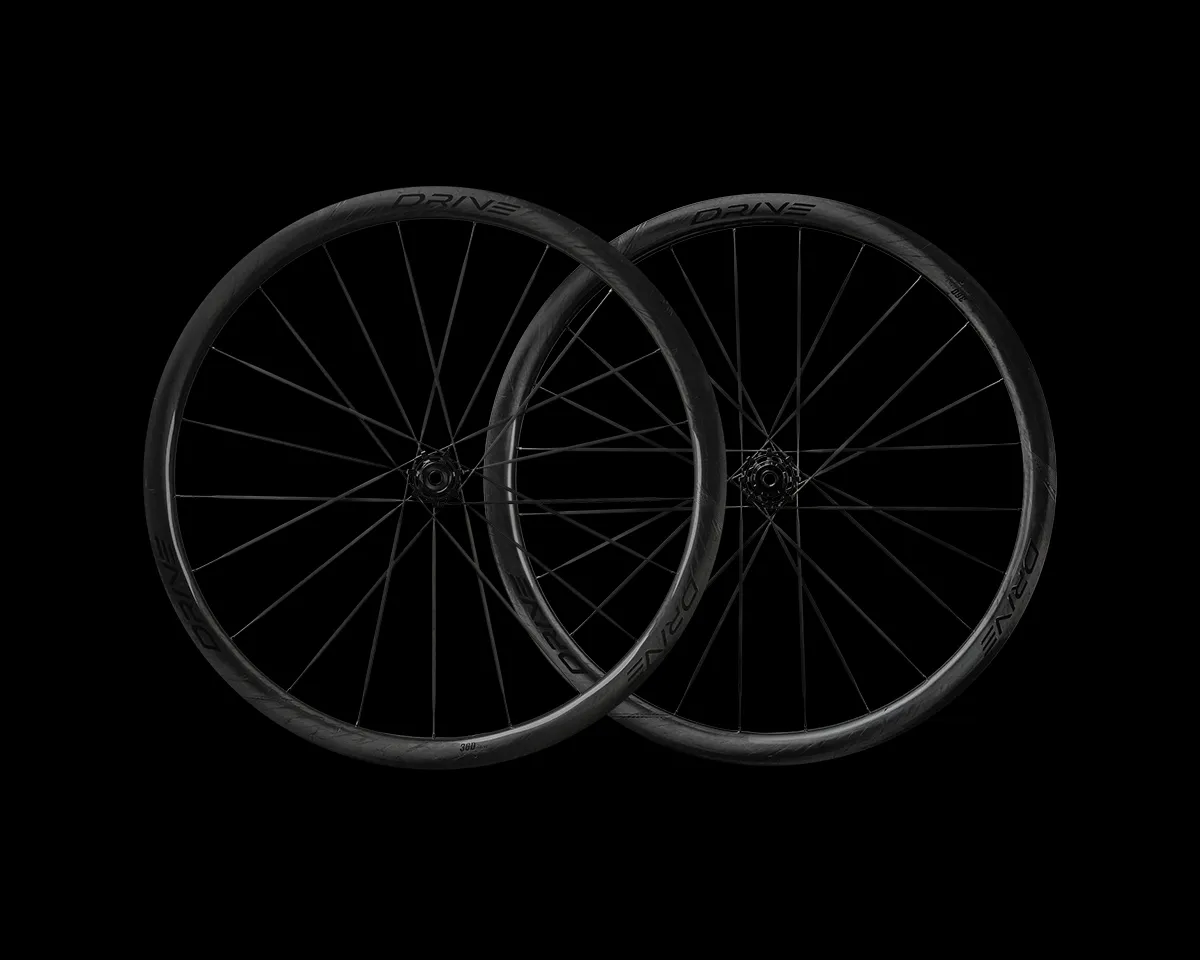

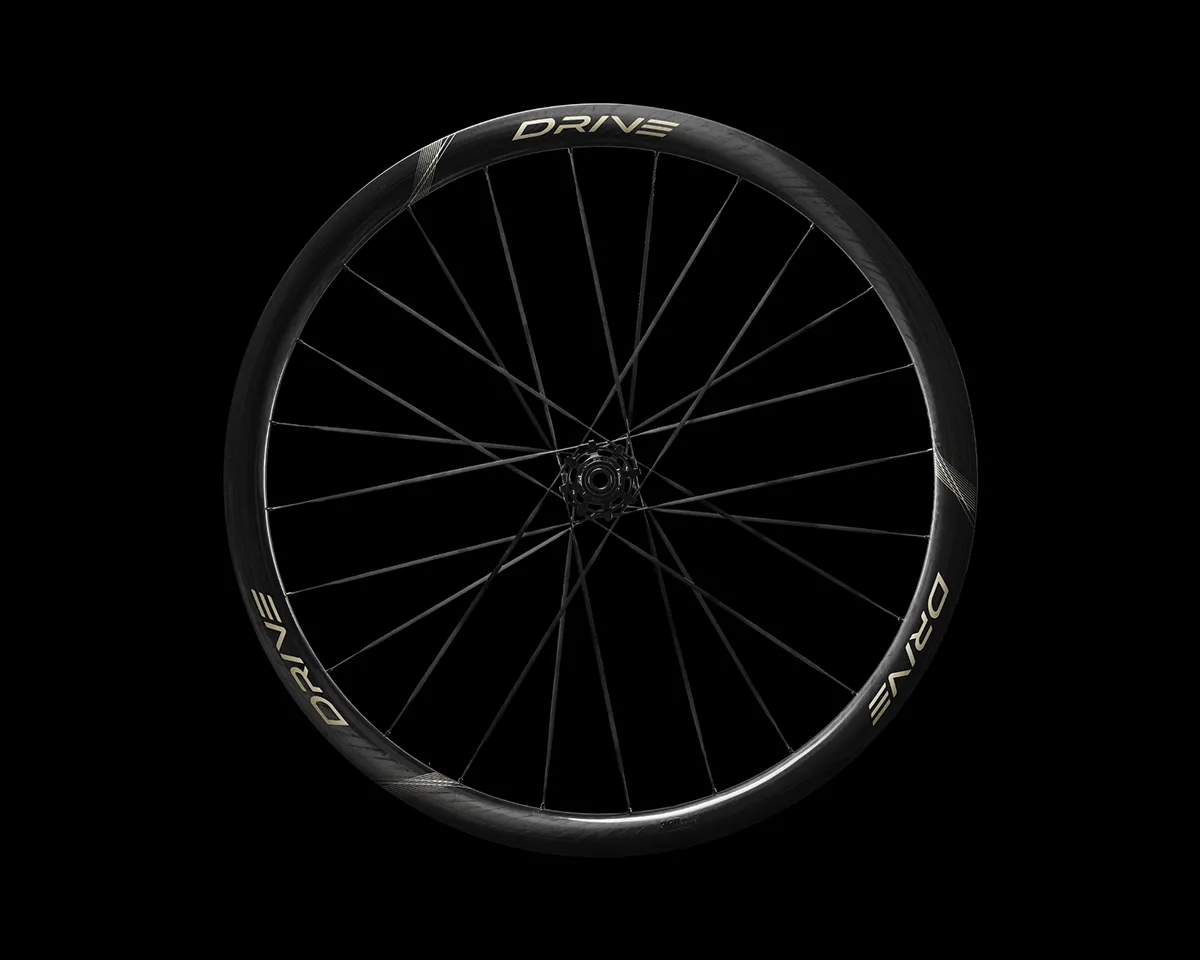

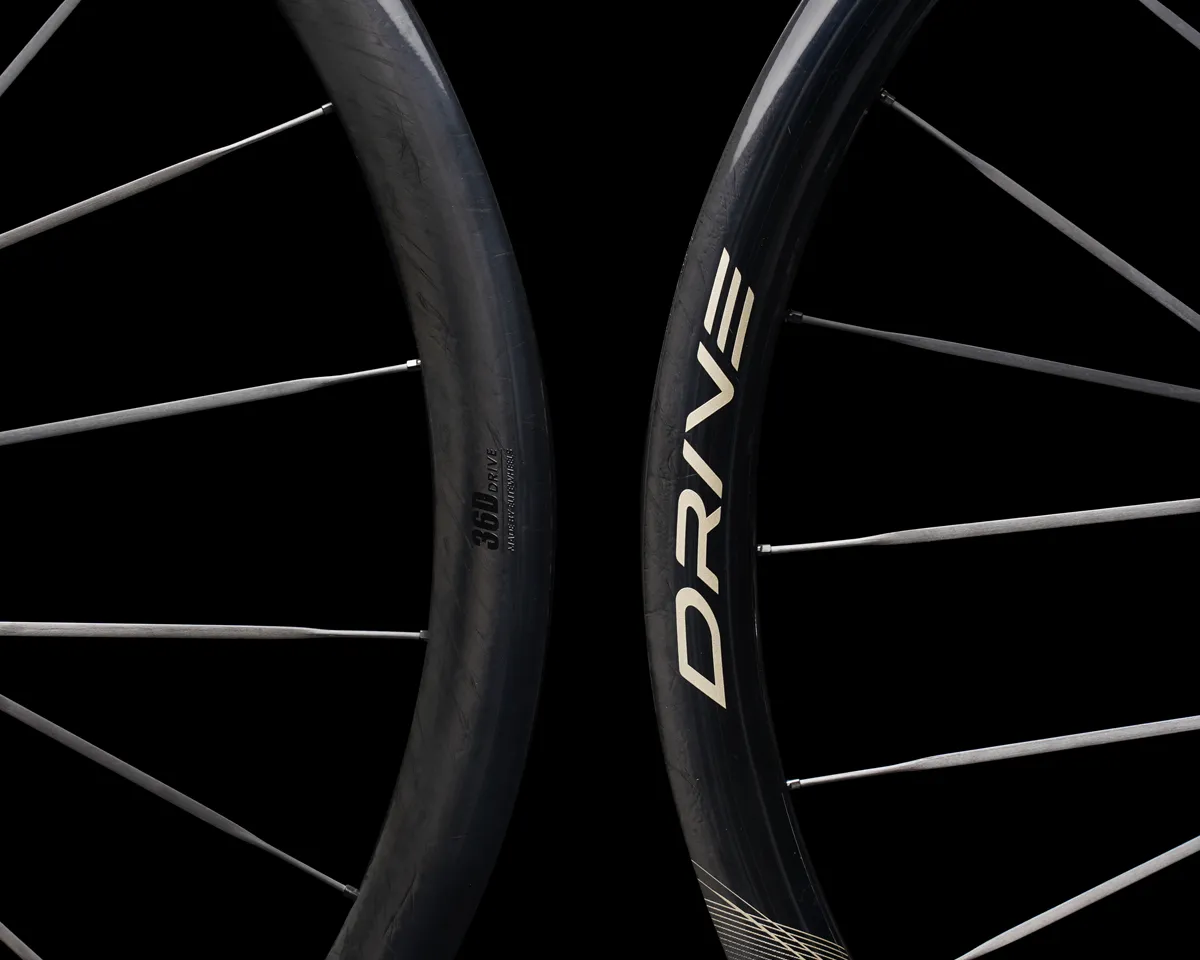

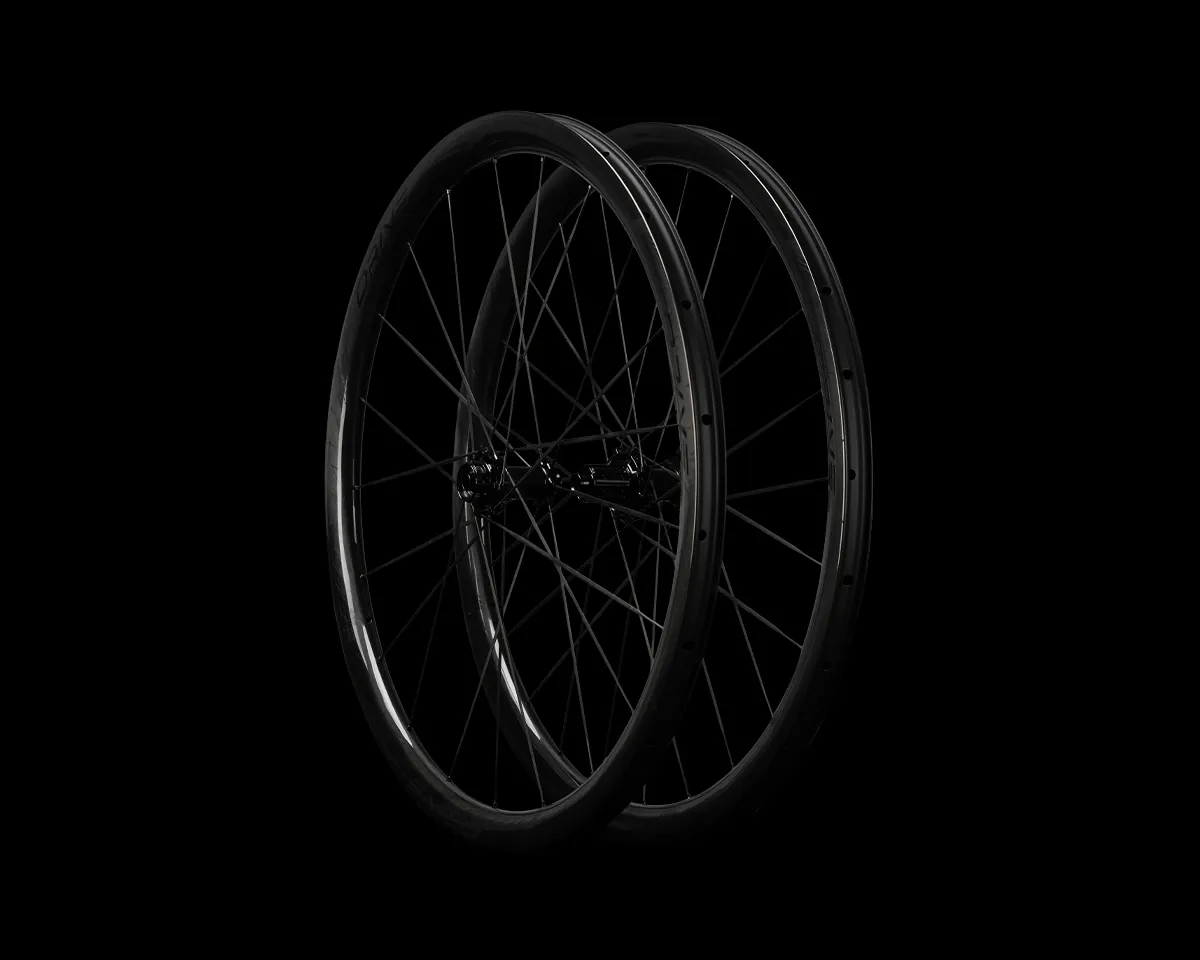

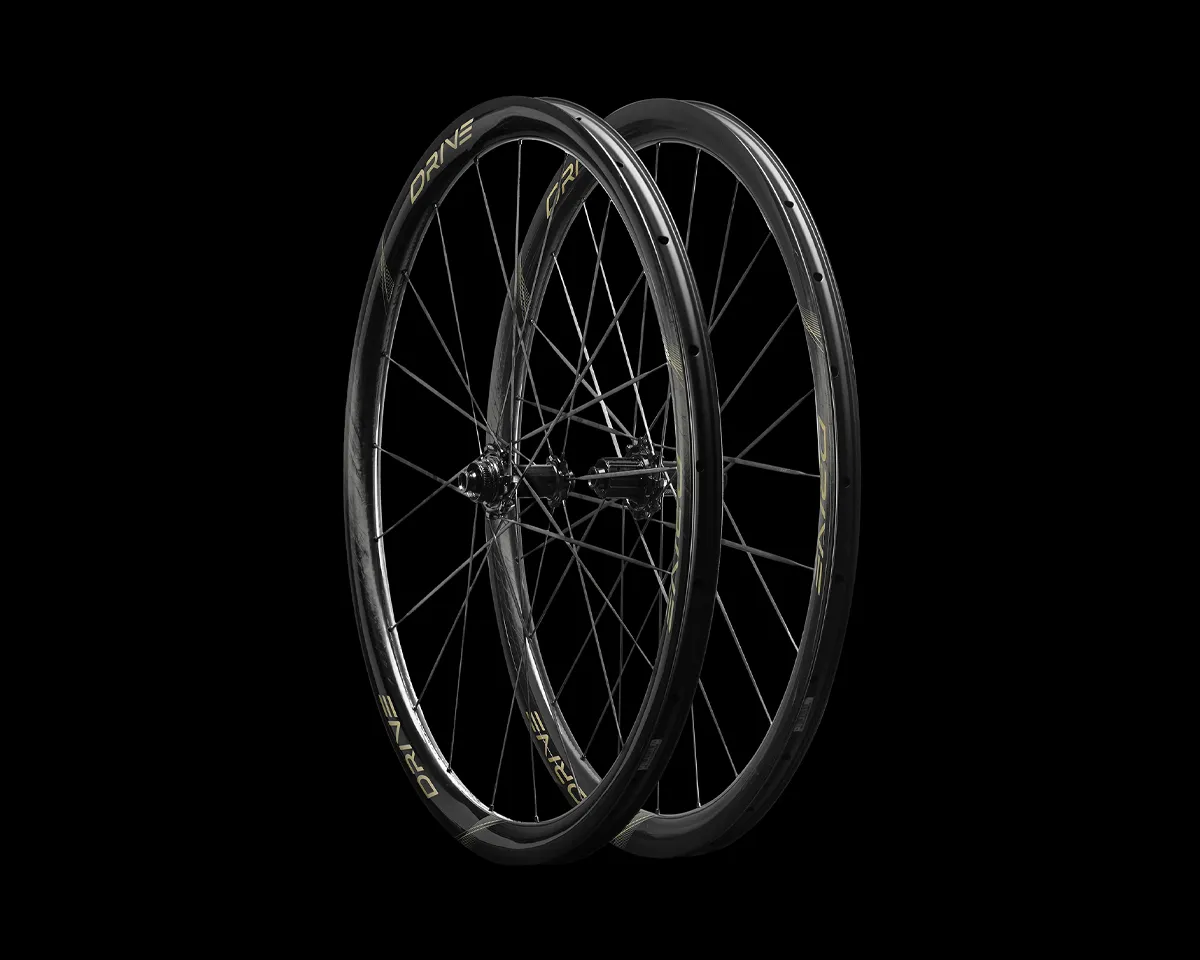

Elite-Wheels Drive 36D II - Disc Brake - Carbon Wheelset

After years of research and development, our engineers have made advancements in maximizing a rim’s durability and responsiveness without adding material, allowing for the next generation of Drive wheels to remain lightweight, despite increasing inner and outer rim widths to support wider tires.

The Drive 36D II was designed to be the perfect climbing wheelset, weighing just 1260 grams for the pair.The U/V-shaped rim profile improves lateral airflow, increasing stability on fast descents and in windy conditions.

In addition to optimizing the rim design, the second generation of Drive wheels comes with several upgrades, namely ETRTO-compliant reduced hooks to offer better aerodynamics, comfort, and traction, quality S&S ceramic bearings, 4.5mm carbon spokes, and our one-of-a-kind Kinetic hub, which features a conical ratchet design.

– Intended Use: Road
– Carbon Spoke Wheelset
– Disc Brake Wheelset
– Brake Interface: Center Lock by default
– Axle: Thru axle by default

Specifications:

• Rims:
• Wheel Size: 700c
• Tire Compatibility: Clincher / Tubeless
• Bead Type: Hooked (Reduced Hook Design)
• Rim Depth: 36mm
• Inner Width: 23mm
• Outer Width: 31mm
• Rim Finish: Glossy Marbling Black
• Hubs:
• Front Hub Spacing: 12x100mm
• Rear Hub Spacing: 12x142mm
• Bearing: S&S Ceramic
• Brake Compatibility: Disc (Center Lock)
• Freehub Type: 50T Star Ratchet
• Freehub Compatibility: Shimano / SRAM XDR
• Spokes:
• Front Spoke Pattern: 3X/Radial (2:1)
• Rear Spoke Pattern: 1X/3X (1:2)
• Spoke Count: 21 Front / 24 Rear
• Spoke Type: Carbon Spoke (4.5mm)
• Nipple Type: Alloy Secure Lock
• Spare Spokes Included: 4
• Other Details:
• Weight (Pair): 1,260g ±30g (without tubeless valves and rim tape)
• Rider Weight Limit: 270lbs / 120kg
• Recommended Tire Sizes: 700 x 28-40C
• Certifications: UCI Approved, CE Certified
• Included Accessories: Pre-installed Rim Tape & Tubeless Valves, 4 Spare Spokes
